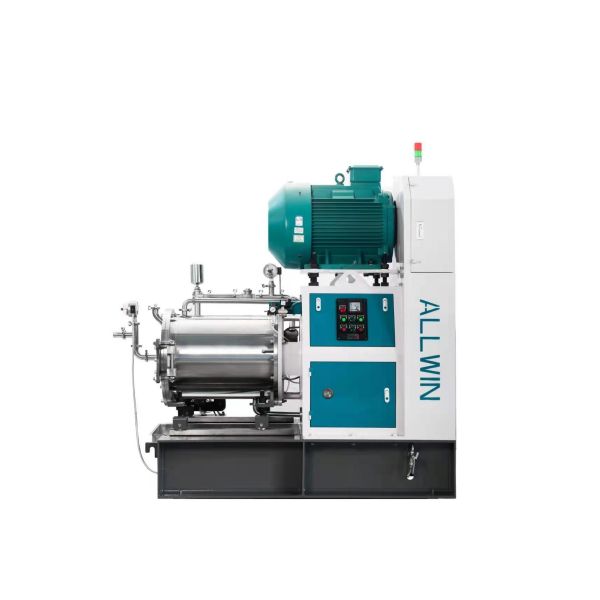

SH50 Nano Grade Medical Capsule Coat Grinding Sand Mill Machine With Static Discharging
This SH series sand mills could reach nano meter fineness requiriments, widely used in medical capsule caot,In Generally, could reach D50 300-500nm. All touching space adopt 316 food grade stainless steel to ensure the safety.
The detailed information:
| No | main parameters | SH50 | Note |
| 1 | Explosion-proof motor kW | 55/75kW | |
| 2 | Effective volume of grinding chamber (L) | 50 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions: L*W*H (mm) | 2140*1200*2050 | |
| 6 | Weight (kg) | 2000 | |
2.2 Detailed Configuration information:
| No | Main parts | SH50 | Notes |
| 1 | External vessel | 304 stainless steel | |
| 2 | Inner grinding chamber | 316L food grade stainless steel | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing system (Rotator+pin) | 304 /316L stainless steel rotator Wearable stainless steel pin | |
| 5 | Feeding and discharging end covers on the chamber | 304 stainless steel | |
| 6 | static discharge screen ring | 304 stainless steel Wire Wound screen ring with Gaps: 0.1-0.5mm. | |
| 7 | Mechanical seal | Intelligent double mechanical seal with mandatory lubricating-cooling system | |
| 8 | Feeding pump | 1” ARO diaphragm pump; | Ingersoll Rand |
| 9 | Appliance configuration | suitable for water base materials, motor (Explosion/ non ex-proof is optional) operation column, electrical appliance boxes; electric contact pressure gauge, temperature, solenoid valves with electrical contacts. Control system | |
| 10 | Fasteners and connecting parts | Stainless steel clamp-type connecting parts | Quick and convenient |
The main processing in workshop:
Work environment and factory site
Food customers :
1.MEIXIANGYUAN to grind transparent mashroom soup from whole marshroom, enhance the tasty smell and lessen the time of boiling
2.TIANWEI FOOD to grind food seasoning,like pepper,mushroom soup hot pot ingredients,etc.
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
